SU-76 Self Propelled Artillery

The SU-76 was a Soviet self propelled artillery vehicle mounting a 76 mm gun.

SU-76: The SU-76 was to a Soviet vehicle mounting a 76 mm gun on a modified T-70 chassis. It was also known as SU-12 for the prototypes.

SU-76BM: A vehicle mounting a 76 mm S-54 on a T-80 chassis.

SU-76D: The SU-76D (also know as SU-80) was a competitor for the SU-76M and often compared to the Jagdpanzer 38(t).

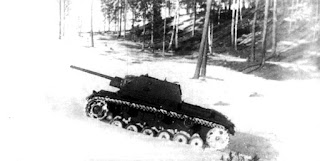

SU-76i: The SU-76i was a Soviet self propelled artillery vehicle built on the captured Panzer III chassis.  Some we captured by the Germans and designated Sturmgesch├╝tz 76.

SU-76M: The SU-76M was an improved version of SU-76. It was also known as SU-15.

SU-76P: The SU-76P (also known as SU-26)
Variants:
1.
Name: SU-76 (SU-12)
Type: Self Propelled Artillery
Origin: Soviet Union
Year: 1942
Produced: 360

Length: 4.96 Meters
Width: 2.71 Meters
Height: 2.1 Meters
Weight: 10500 Kilograms
Speed: 40 km/h

Crew: 4

Primary Armament:
-76 mm ZiS-3Sh
Secondary Armament:
-7.62 mm DT

Gun Flexibility:
15° Elevation
3° Depression
15° Left
15° Right


Armor:
-Hull
35 mm Front
25 mm Side
15 mm Rear
10 mm Top
7 mm Bottom
-Upper Structure
25 mm Front

2.
Name: SU-76BM
Type: Self Propelled Artillery
Origin: Soviet Union
Year: 1943
Produced: ???

Length: ???
Width: ???
Height: ???
Weight: 10500 Kilograms
Speed: 35 km/h

Crew: 4

Primary Armament:
-76 mm S-54
Secondary Armament:
-???

Gun Flexibility: °

Armor:
-Hull
35 mm Front
15 mm Rear

3.
Name: SU-76D (SU-80)
Type: Self Propelled Artillery
Origin: Soviet Union
Year: 1943
Produced:

Length: 5.85 Meters
Width: 2.43 Meters
Height: 1.96 Meters
Weight: 11600 Kilograms
Speed: 36 km/h

Crew: 4

Primary Armament:
-76 mm S-1
Secondary Armament:
-???

Gun Flexibility:
14° Elevation
5° Depression
13.5° Left
13.5° Right

Armor:
-Hull
60 mm Front
15 mm Side
15 mm Rear
10 mm Top
6 mm Bottom
-Upper Structure
60 mm Front


4.
Name: SU-76i

Type: Self Propelled Artillery
Origin: Soviet Union
Year: 1942
Produced: at least 1 captured

Length: 5.56 Meters
Width: 2.91 Meters
Height: 2.37 Meters
Weight: 22500 Kilograms
Speed: 40 km/h

Crew: 4

Primary Armament:
-76 mm ZiS-3Sh OR
-76 mm S-1
Secondary Armament:
-none

Gun Flexibility:
15° Elevation
5° Depression
10° Left
10° Right

Armor:
-Hull
30 mm Front
30 mm Side
20 mm Rear
15 mm Top
15 mm Bottom
-Upper Structure
35 mm Front
25 mm Side
15 mm Rear
15 mm Top

5.
Name: SU-76M (SU-15)
Type: Self Propelled Artillery
Origin: Soviet Union
Year: 1943
Produced: 14292

Length: 4.96 Meters
Width: 2.71 Meters
Height: 2.1 Meters
Weight: 10500 Kilograms
Speed: 40 km/h

Crew: 4

Primary Armament:
-76 mm ZiS-3Sh
Secondary Armament:
-7.62 mm DT

Gun Flexibility:
15° Elevation
3° Depression
15° Left
15° Right


Armor:
-Hull
35 mm Front
25 mm Side
15 mm Rear
10 mm Top
7 mm Bottom
-Upper Structure
25 mm Front

6.
Name: SU-76P (SU-26)
Type: Self Propelled Artillery
Origin: Soviet Union
Year: 1943
Produced: ???

Length: 4.62 Meters
Width: ???
Height: ???
Weight: ~12000 Kilograms
Speed: ???

Crew: 4

Primary Armament:
-76 mm obr. 1927
Secondary Armament:
-none

Gun Flexibility: °

Armor:
-Hull
16 mm Front
10 mm Side
10 mm Rear
10 mm Top
-Upper Structure
20 mm Front
