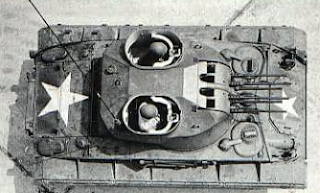

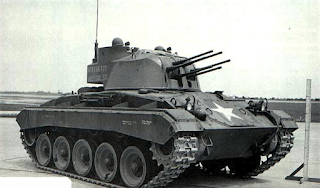

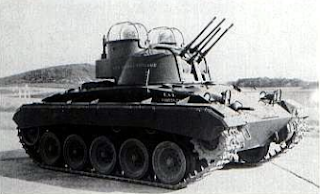

T77 Self Propelled Anti-Aircraft

The T77 was a anti aircraft vehicle built on the T24 chassis. The vehicle was supposed to be able to elevate and traverse at 65° per second. The T77E1 had a different gun mount. One of each was built.

Name: T77
Type: Self Propelled Anti-Aircraft
Origin: United States
Year: 1943
Produced: 2 (one T77 and one T77E1)

Length: 5.029 Meters
Width: 2.997 Meters
Height: 2.768 Meters
Weight: ~18370 Kilograms
Speed: 56 km/h

Crew: 4

Primary Armament:
-12.7 mm M2(4) (original plan)
-12.7 mm M2 (6)
Secondary Armament:
-7.62 mm M1919A4

Gun Flexibility:
85° Elevation
10° Depression

25 mm Front
25 front side, 19 mm rear side
19 mm Rear
13 mm Top
13 mm front bottom 10 mm rear bottom
13 mm Front (13 mm Gun Sheild?)
13 mm Side
13 mm Rear
13 mm Top
