Panzer II Light Tank

The Panzer II was the successor to the Panzer I. Most vehicles mounted the KwK 30 or the improved KwK 38 The Panzer II J, a scout vehicle had two companies working on it, MAN designed the turret and Daimler-Benz designed the Hull. The Panzer II Luchs was a late light tank used until the end of the war. Many other variants were made of the vehicle.
Variants:
1.
Name: Panzer II
Type: Light Tank
Origin: Germany
Year: 1935
Produced: 25

Length: 4.38 Meters
Width: 2.14 Meters
Height: 1.945 Meters
Weight: 7600 Kilograms
Speed: 40 km/h

Crew: 3

Primary Armament:
-20 mm KwK 30 L/55
Secondary Armament:
-7.92 mm MG13

Gun Flexibility:
20° Elevation
9.5° Depression

Armor:
-Hull
13 mm Front
13 mm Side
13 mm Rear
8 mm Top
5 to 10 mm Bottom
-Turret
13 mm Front (15 mm Gun Shield)
13 mm Side
13 mm Rear
8 mm Top

2.
Name: Panzer II A [earlier Panzer II a. in brakets]
Type: Light Tank
Origin: Germany
Year: 1937 [1935]
Produced:  [75: a/1 had 10, a/2 had 25, a/3 had 50]

Length: 4.81 Meters [4.38 Meters]
Panzer I a.
Width: 2.28 Meters [2.14 Meters]
Height: 2.15 Meters [1.945 Meters]
Weight: 95 Kilograms [7600 Kilograms]
Speed: 48 km/h (24 km/h off-road) [40 km/h]

Crew: 3

Primary Armament:
-20 mm KwK 30 L/55
Secondary Armament:
-7.92 mm MG34
[-7.92 mm MG13]

Gun Flexibility:
20° Elevation
9.5° Depression

Armor:
-Hull
14.5 mm Front [13 mm Front]
14.5 mm Side [13 mm Side]
14.5 mm Rear[13 mm Rear]
10 m Top [8 mm Top]
5 to 10 mm Bottom [5 to 10 mm Bottom]
-Turret
14.5 mm Front (16 mm Gun Shield) [13 mm Front (15 mm Gun Shield)]
14.5 mm Side [13 mm Side]
14.5 mm Rear [13 mm Rear]
10 mm Top [8 mm Top]

3.
Name: Panzer II B [earlier Panzer II b. in brakets]
Panzer II b.
Type: Light Tank
Origin: Germany
Year: 1937 [1936]
Produced: [1 or more]

Length: 4.81 Meters [4.38 Meters]
Width: 2.28 Meters [2.14 Meters]
Height: 2.15 Meters [1.945 Meters]
Weight: 9500 Kilograms [7600 Kilograms]
Speed: 48 km/h (24 km/h off-road) [40 km/h]

Crew: 3

Primary Armament:
-20 mm KwK 30 L/55
Secondary Armament:
-7.92 mm MG34

Gun Flexibility:
20° Elevation
9.5° Depression

Armor:
-Hull
14.5 mm Front [13 mm Front]
14.5 mm Side [13 mm Side]
14.5 mm Rear[13 mm Rear]
10 m Top [8 mm Top]
5 to 10 mm Bottom [5 to 10 mm Bottom]
-Turret
14.5 mm Front (16 mm Gun Shield) [13 mm Front (15 mm Gun Shield)]
14.5 mm Side [13 mm Side]
14.5 mm Rear [13 mm Rear]
10 mm Top [8 mm Top]

4.
Name: Panzer II C [earlier Panzer II c. in brakets]
Type: Light Tank

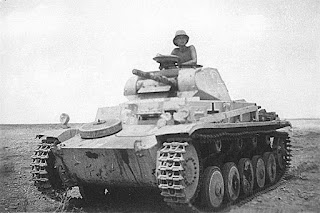

Panzer I c.
Origin: Germany
Year: 1937
Produced: ???

Length: 4.81 Meters [4.38 Meters]
Width: 2.28 Meters [2.14 Meters]
Height: 2.15 Meters [1.945 Meters]
Weight: 9500 Kilograms
Speed: 48 km/h (24 km/h off-road)

Crew: 3

Primary Armament:
-20 mm KwK 30 L/55
Secondary Armament:

-7.92 mm MG34

Gun Flexibility: °

Armor:
-Hull
14.5 + 20 bolted mm Front
14.5 mm Side
14.5 mm Rear
10 m Top
5 to 10 mm Bottom
-Turret
14.5 + 20 bolted mm Front (16 + 14.5 bolted mm Gun Shield)
14.5 mm Side
14.5 mm Rear
10 mm Top

5.
Name: Panzer II D
Type: Light Tank
Origin: Germany
Year: 1939
Produced: 43

Length: 4.64 Meters
Width: 2.3 Meters
Height: 2.02 Meters
Weight: 10000 Kilograms
Speed: 55 km/h

Crew: 3

Primary Armament:
-20 mm KwK 30 L/55
Secondary Armament:
-7.92 mm MG34

Gun Flexibility: °

Armor:
-Hull
14.5 mm Front
14.5 mm Side
14.5 mm Rear
10 mm Top
5 to 10 mm Bottom
-Turret
14.5 mm Front (16 mm Gun Shield)
14.5 mm Side
14. mm Rear
10 mm Top

6.
Name: Panzer II E
Type: Light Tank
Origin: Germany
Year: 1939
Produced: 43

Length: 4.64 Meters
Width: 2.3 Meters
Height: 2.02 Meters
Weight: 10000 Kilograms
Speed: 55 km/h

Crew: 3

Primary Armament:
-20 mm KwK 30 L/55
Secondary Armament:
-7.92 mm MG34

Gun Flexibility: °

Armor:
-Hull
30 mm Front
14.5 mm Side
14.5 mm Rear
10 mm Top
5 to 10 mm Bottom
-Turret
14.5 mm Front (16 mm Gun Shield)
14.5 mm Side
14.5 mm Rear
10 mm Top

7.
Name: Panzer II F
Type: Light Tank
Origin: Germany
Year: 1941
Produced: 533

Length: 4.81 Meters
Width: 2.28 Meters
Height: 2.15 Meters
Weight: 9500 Kilograms
Speed: 40 km/h

Crew: 3

Primary Armament:
-20 mm KwK 38 L/55
Secondary Armament:
-7.92 mm MG34

Gun Flexibility: °

Armor:
-Hull
35 mm Front
15 mm Side
15 mm Rear
15 mm Top
5 to 10 mm Bottom
-Turret
30 mm Front (30 mm Gun Shield)
15 mm Side
15 mm Rear
10 mm Top

8.
Name: Panzer II G/VK 9.01 (MAN)
Type: Light Tank
Origin: Germany
Year:  1941
Produced: 12

Length: 4.24 Meters
Width: 2.34 Meters
Height: 2.05 Meters
Weight: 10500 Kilograms
Speed: 65 km/h (50 km/h off-road)

Crew: 3

Primary Armament:
-20 mm KwK 38 L/55
Secondary Armament:
-7.92 mm MG34

Gun Flexibility: °

Armor:
-Hull
30 mm Front
15 mm Side
15 mm Rear
20 mm Top
15 mm Bottom
-Turret
30 mm Front
15 mm Side
15 mm Rear
20 mm Top


9.
Name: Panzer II H/VK 9.03 (MAN)
Type: Light Tank
Origin: Germany
Year: 1942
Produced:

Length: ???
Width: ???
Height: ???
Weight: 10500 Kilograms
Speed: 65 km/h

Crew: 3

Primary Armament:
20 mm KwK 38 L/55
Secondary Armament:
-7.92 mm MG34

Gun Flexibility: °

Armor:
-Hull
30 mm Front
20 mm Side
20 mm Rear
5 mm Top
10 mm Bottom
-Turret
30 mm Front
2 mm Side
20 mm Rear

10.
Name: Panzer II J/VK 16.01 (DB)/(MAN)
Type: Light Tank
Origin: Germany
Year: 1939
Produced: 22

Length: 4.81 Meters
Width: 2.28 Meters
Height: 2.02 Meters
Weight: 18000 Kilograms
Speed: 28 km/h

Crew: 3

Primary Armament:
-20 mm KwK 38 L/55
Secondary Armament:
-7.92 mm MG34

Gun Flexibility: °

Armor:
-Hull
80 mm Front
50 mm Side
50 mm Rear
25 mm Top
10 mm Bottom
-Turret
80 mm Front
50 mm Side
50 mm Rear
25 mm Top

11.
Name: Panzer II L Luchs/ VK 13.03 (MAN)
Type: Light Tank
Origin: Germany
Year: 1942
Produced: 136

Length: 4.63 Meters
Width: 2.48 Meters
Height: 2.21 Meters
Weight: 11800 Kilograms
Speed: 60 km/h (30 km/h off-road)

Crew: 4

Primary Armament:
-20 mm KwK 38 L/55
Secondary Armament:
-7.92 mm MG34

Gun Flexibility:
18° Elevation
9° Depression

Armor:
-Hull
30 mm Front
20 mm Side
20 mm Rear
10 mm Top
10 mm Bottom
-Turret
30 mm Front
20 mm Side
20 mm Rear

12.
Name: Panzer II M/VK 13.01 (MAN)
Type: Light Tank
Origin: Germany
Year: 1942
Produced: 4

Length: ???
Width: ???
Height: ???
Weight: 10500 Kilograms
Speed: 65 km/h

Crew: 3

Primary Armament:
-20 mm KwK 38 L/55
Secondary Armament:
-7.92 mm MG34

Gun Flexibility: °

Armor:
-Hull
30 mm Front
20 mm Side
20 mm Rear
5 mm Top
10 mm Bottom
-Turret
30 mm Front
2 mm Side
20 mm Rear
