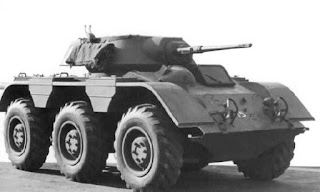

M38 Wolfhound Light Armored Car

The M38 Wolfhound was meant to be the replacement for the M8 Wolfhound. Only a few vehicle were made. The vehicle was fitted with a M24 Chaffee turret later in development.

Variants:
1.
Name: M38 Wolfhound
Type: Armored Car
Origin: United States
Year: 1944
Produced: ~5

Length: 5.11 Meters
Width: 2.59 Meters
Height: 1.98 Meters
Weight: 6946 Kilograms
Speed: 97 km/h

Crew: 4

Primary Armament:
-37 mm M6 OR
-75 mm M6 (M24 Chaffee Turret)
Secondary Armament:
-7.62 mm M1919A4 AND
-12.7 mm M2

Gun Flexibility:
20° Elevation (15° for M24 turret)
10° Depression
For M1919A4:
20° Elevation (15° for M24 turret)
10° Depression

Armor:
-Hull
10 mm Front
10 mm Side
10 mm Rear
6 mm Top
10 mm Bottom

-Turret
13 mm Front (25 mm Gun Shield)
10 mm Side
10 mm Rear
Open top
-M24 Chaffee Turret
38 mm Front (38 mm Gun Shield)
25 mm Side
25 mm Rear
13 mm Top

Sources:

http://afvdb.50megs.com/usa/m24chaffee.html

http://www.aviarmor.net/tww2/armored_cars/usa/ac_m38.htm

http://www.warwheels.net/images/M38armoredCar2DATASHEET.pdf

http://afvdb.50megs.com/usa/m38wolfhound.html

http://www.militaryfactory.com/armor/detail-page-2.asp?armor_id=482
