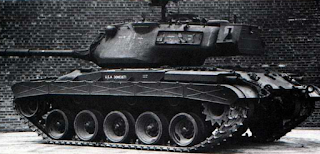

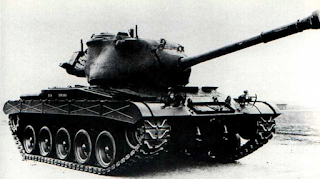

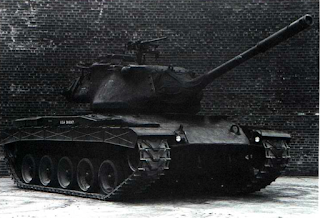

T42 Medium Tank

The T42 was an experimental medium tank intended to succeed the M46. The turret from this tank is mounted on the M47 Patton II. A British Liaison Officer suggested the 20-Pounder would be better than the M3A1 however the T119 was chosen.
Variants:
1.
Name: T42
Type: Medium Tank
Origin: United States
Year: 1948
Produced: 6

Length: 6.35 Meters
Width: 3.51 Meters
Height: 3.17 Meters
Weight: ~46170 Kilograms
Speed: 48 km/h

Crew: 5

Primary Armament:
-84 mm 20-Pounder OR
-90 mm M3A1 OR
-90 mm T119 OR
-90 mm T119E1
Secondary Armament:
-12.7 mm Gun AND
-7.62 mm M1919A4 OR
-12.7 mm Gun

Gun Flexibility:
19° Elevation
10° Depression

Armor:
-Hull
102 mm Front
76 mm Side
51 mm Rear
25 mm Top
22 mm Bottom
-Turret
100 mm Front (110 mm Gun Shield)
64 mm Side
76 mm Rear
25 mm Top

Sources:
Hunnicutt Patton
